Assembly Instruction for JPS 356-912 Oilsump-kit

                                           Pictures for assembly of JPS 356-912 Oilsump-kit

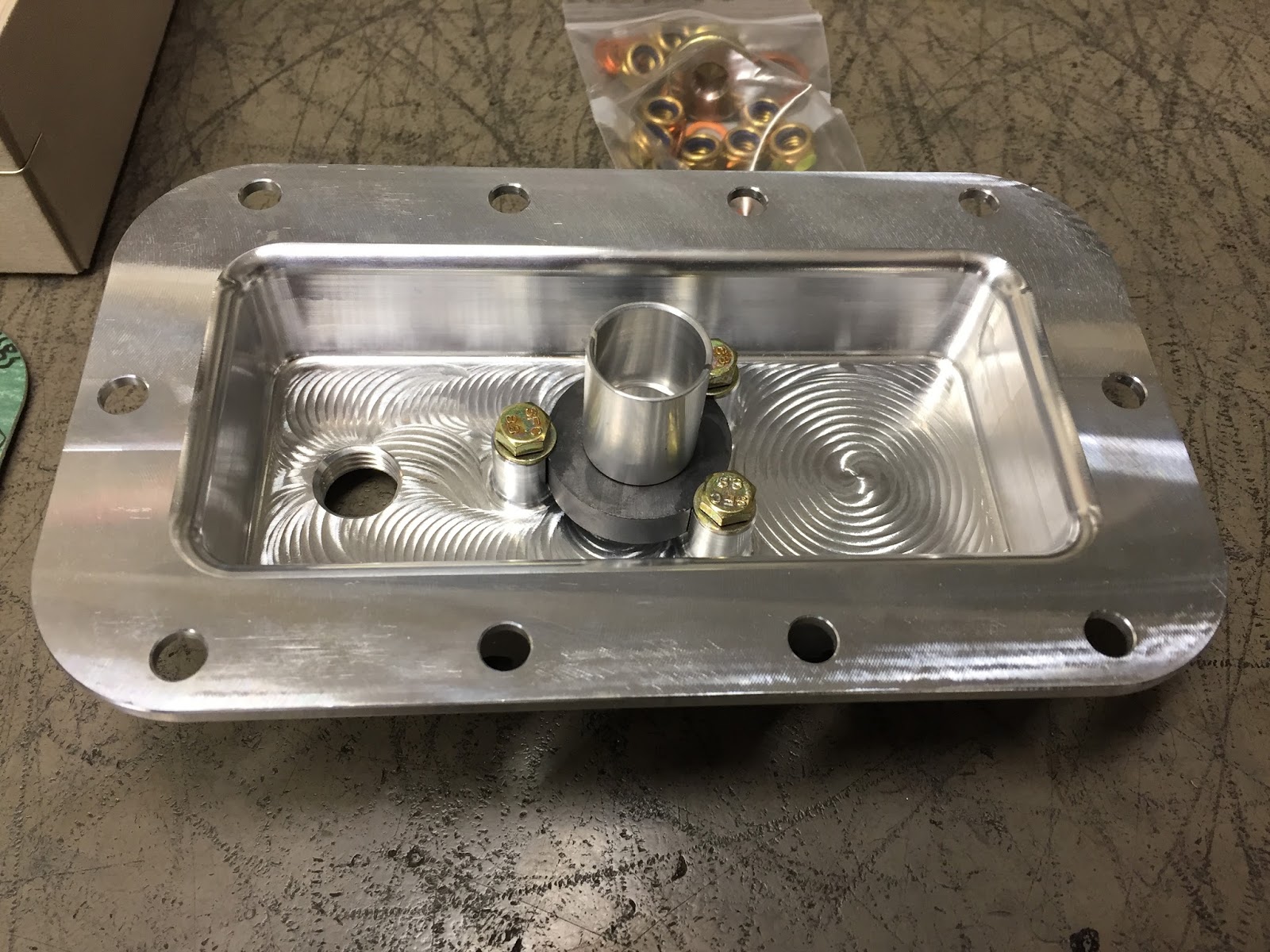

Take the oil tube extension and put it with the small dia. in the ring-magnet

Install the 1st gasket, the Oil strainer, 2nd gasket

now attach the oil sump-plate make sure the oil tube fits into the oil tube Extension


Attach the cooper rings to the M6 bolts

Tighten the M6 screws (torque 8Nm or 6Ft-Lbs)

Install the cooper ring over the drain plug an tighten it to (torque 20Nm or 15Ft-Lbs)
